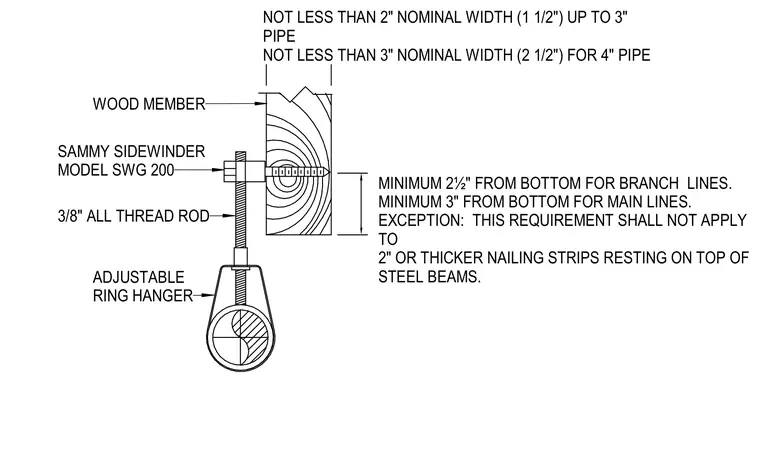

A Sammy Sidewinder Model SWG 200 side-mount anchor fastens into the side of a wood member to support fire sprinkler piping. A 3/8-inch all-thread rod suspends an adjustable ring hanger from the anchor. The wood member requires a minimum width of 1-1/2 inches for pipes up to 3 inches, and a minimum width of 2-1/2 inches for 4-inch pipes. The anchor must maintain a minimum distance of 2-1/2 inches from the bottom of the wood member for branch lines and 3 inches for main lines, with an exception for 2-inch or thicker nailing strips resting on top of steel beams.
SAMMY SIDEWINDER MODEL SWG 200 3/8" ALL THREAD ROD ADJUSTABLE RING HANGER WOOD MEMBER MINIMUM 2½" FROM BOTTOM FOR BRANCH LINES. MINIMUM 3" FROM BOTTOM FOR MAIN LINES. EXCEPTION: THIS REQUIREMENT SHALL NOT APPLY TO 2" OR THICKER NAILING STRIPS RESTING ON TOP OF STEEL BEAMS. NOT LESS THAN 2" NOMINAL WIDTH (1 1/2") UP TO 3" PIPE NOT LESS THAN 3" NOMINAL WIDTH (2 1/2") FOR 4" PIPE
