Riser Diagram

Elements

About this detail

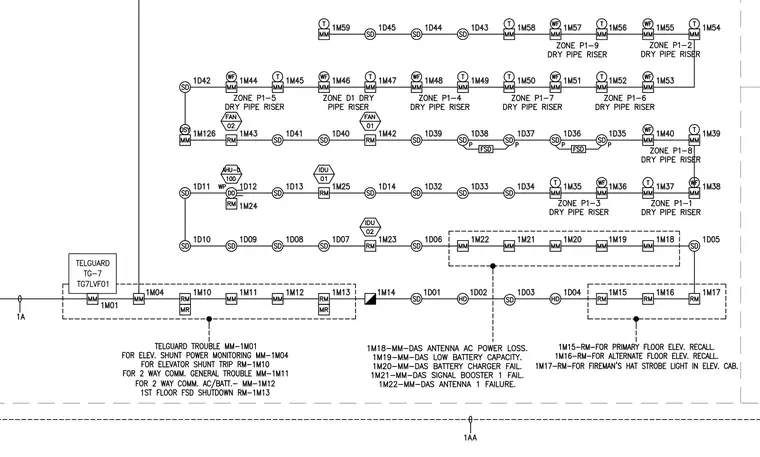

The fire protection and life safety riser diagram maps out dry pipe riser zones alongside various monitor modules, relay modules, smoke detectors, and flow switches. Signal line circuits connect field devices including Telguard communication units, air handling unit shutdowns, damper controls, and elevator recall monitors. Specific relay modules track trouble conditions such as shunt power monitoring, battery charger failure, and DAS antenna power loss. System components are tagged with alphanumeric identifiers corresponding to specific zones and control panel addresses.
