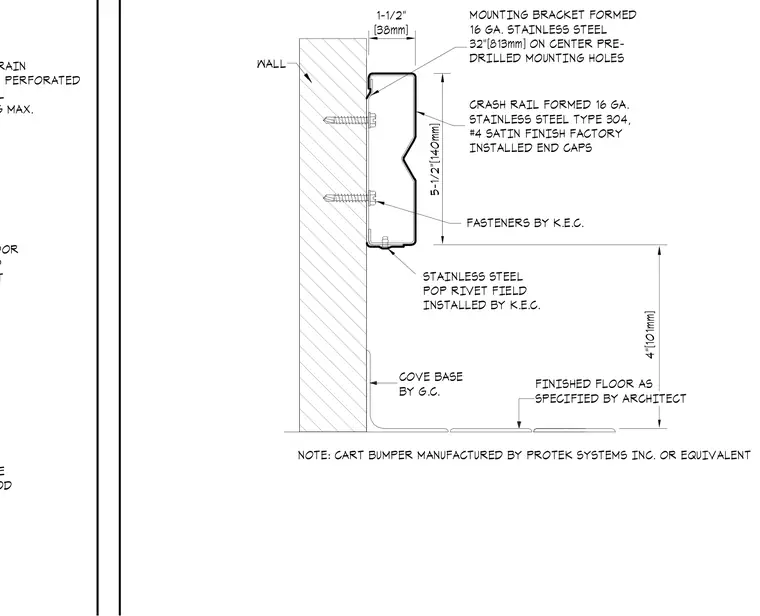

A stainless steel cart bumper and crash rail assembly mounts to a wall. The crash rail is formed from 16-gauge type 304 stainless steel with a #4 satin finish and factory-installed end caps. It is secured with fasteners through a formed 16-gauge stainless steel mounting bracket that features pre-drilled mounting holes spaced 32 inches on center. A stainless steel pop rivet, field-installed by the manufacturer, connects the components. Below the crash rail, a cove base sits above the finished floor as specified by the architect, positioned 4 inches above the floor level.
G.C. TO COORDINATE W/ P.C. SIZE & METHOD PITCHED TO DRAIN FINISHED FLOOR AS SPECIFIED BY ARCHITECT 1"[25mm]x1"[25mm] SQUARE PERFORATED #12 GA. STAINLESS STEEL GRATE 48"[1220mm] LONG MAX. 4"[101mm] 5-1/2"[140mm] FASTENERS BY K.E.C. 1-1/2" [38mm] STAINLESS STEEL POP RIVET FIELD INSTALLED BY K.E.C. COVE BASE BY G.C. FINISHED FLOOR AS SPECIFIED BY ARCHITECT NOTE: CART BUMPER MANUFACTURED BY PROTEK SYSTEMS INC. OR EQUIVALENT WALL MOUNTING BRACKET FORMED 16 GA. STAINLESS STEEL 32"[813mm] ON CENTER PRE- DRILLED MOUNTING HOLES CRASH RAIL FORMED 16 GA. STAINLESS STEEL TYPE 304, #4 SATIN FINISH FACTORY INSTALLED END CAPS
