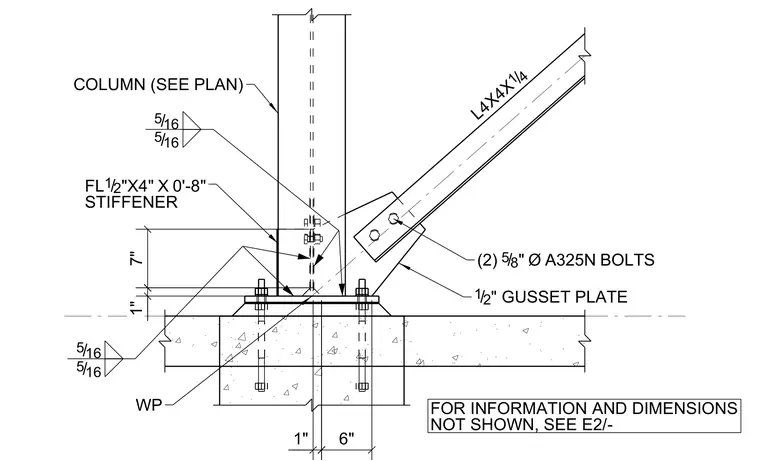

A structural steel column connects to a base plate anchored into a concrete footing with anchor bolts. A one-half-inch gusset plate is welded to the column web and connects to a diagonal L4x4x1-1/4 angle brace using two five-eighth-inch diameter A325-N bolts. A flat one-half-inch by four-inch by zero-foot-eight-inch stiffener plate is welded to the column web with five-sixteenth-inch fillet welds. Additional information and dimensions are referenced to drawing E2.
FOR INFORMATION AND DIMENSIONS NOT SHOWN, SEE E2/- 516 / 516 / 516 / 516 / L4X4X 14 / COLUMN (SEE PLAN) 12 / " GUSSET PLATE FL 1 2 / "X4" X 0'-8" STIFFENER (2) 5 8 / " Ø A325N BOLTS 1" 7" 1" 6" WP
