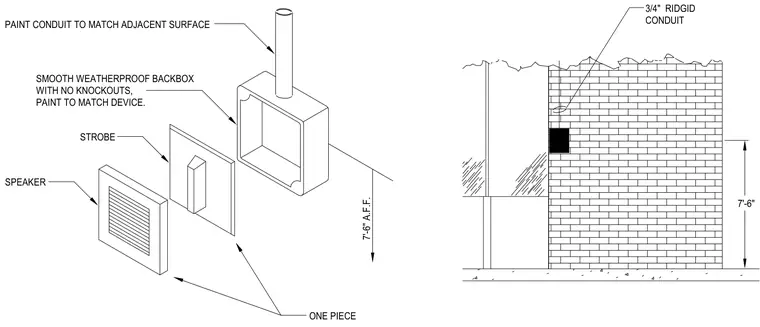

A three-quarter inch rigid conduit extends vertically to a smooth weatherproof backbox with no knockouts, housing a one-piece speaker and strobe assembly. The device is mounted at seven feet six inches above the finished floor. The conduit and backbox are painted to match the adjacent surface.
3/4" RIDGID CONDUIT 7'-6" ONE PIECE SPEAKER STROBE SMOOTH WEATHERPROOF BACKBOX WITH NO KNOCKOUTS, PAINT TO MATCH DEVICE. PAINT CONDUIT TO MATCH ADJACENT SURFACE 7'-6" A.F.F.
