Fire Protection · F-2NDS8

Typical Monitor Module

Materials

Elements

About this detail

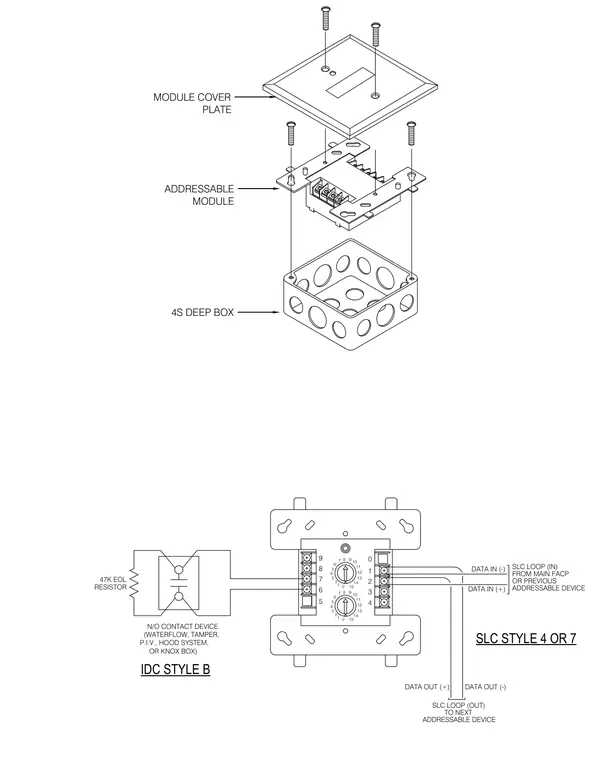

An addressable fire alarm monitor module mounts within a 4S deep box and secures with machine screws beneath a matching cover plate. The signaling line circuit loops in and out of the module terminals for communication with the main fire alarm control panel or previous addressable devices. An initiating device circuit connects on the opposite side with a forty-seven kilohm end-of-line resistor to monitor normally open contact devices such as waterflow switches, tamper switches, post indicator valves, hood systems, or Knox boxes.
