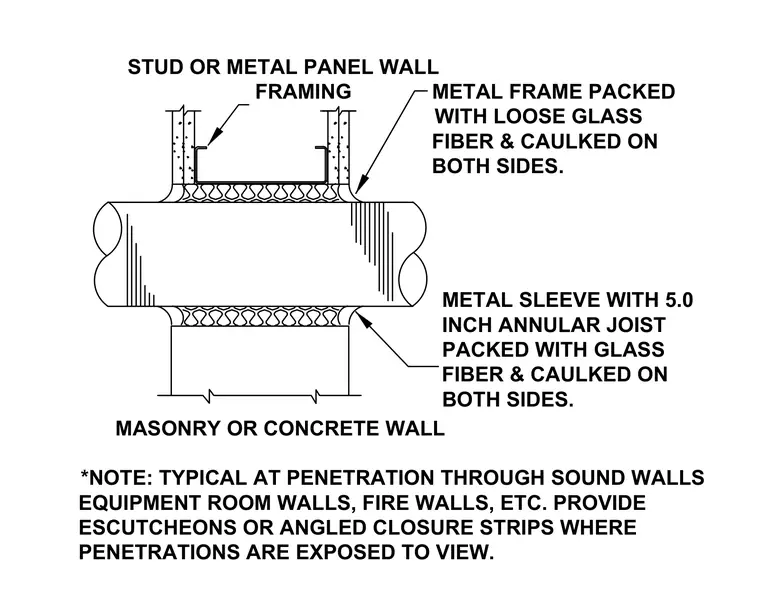

A metal sleeve penetrates through a masonry, concrete, or stud and metal panel wall framing assembly. The five-inch annular space is packed with loose glass fiber and caulked on both sides. Escutcheons or angled closure strips are provided where penetrations are exposed to view. This assembly is typical at penetrations through sound walls, equipment room walls, and fire walls.
METAL SLEEVE WITH 5.0 INCH ANNULAR JOIST PACKED WITH GLASS FIBER & CAULKED ON BOTH SIDES. MASONRY OR CONCRETE WALL *NOTE: TYPICAL AT PENETRATION THROUGH SOUND WALLS EQUIPMENT ROOM WALLS, FIRE WALLS, ETC. PROVIDE ESCUTCHEONS OR ANGLED CLOSURE STRIPS WHERE PENETRATIONS ARE EXPOSED TO VIEW. STUD OR METAL PANEL WALL FRAMING METAL FRAME PACKED WITH LOOSE GLASS FIBER & CAULKED ON BOTH SIDES.
