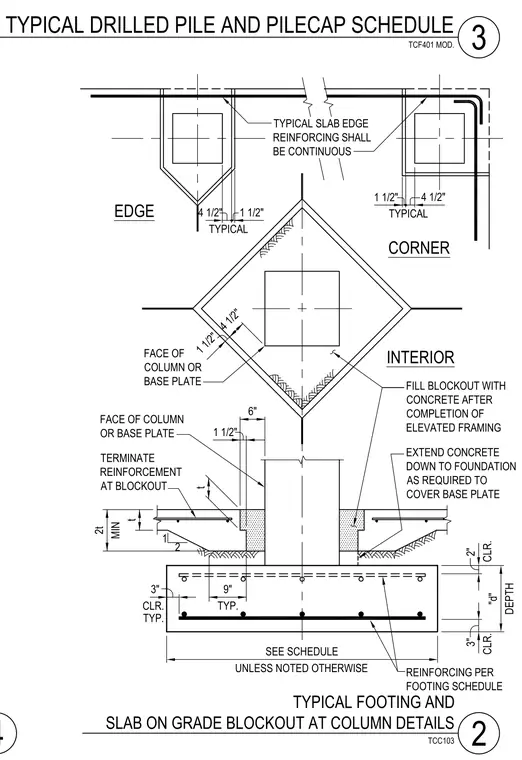

Concrete footing and slab-on-grade blockout configurations at column locations for edge, corner, and interior conditions. Continuous slab edge reinforcing terminates at the blockout and a designated blockout area is filled with concrete after completion of elevated framing. The foundation footing includes specified reinforcing per the footing schedule with typical clearances of three inches and nine inches typical spacing. Concrete is extended down to the foundation as required to cover the base plate, maintaining specified dimensions such as one and a half inches typical edge distance and two times thickness minimum depth.
"d" DEPTH 2" CLR. 3" CLR. SEE SCHEDULE UNLESS NOTED OTHERWISE 3" TERMINATE REINFORCEMENT AT BLOCKOUT EXTEND CONCRETE DOWN TO FOUNDATION AS REQUIRED TO COVER BASE PLATE FACE OF COLUMN OR BASE PLATE REINFORCING PER FOOTING SCHEDULE TYPICAL SLAB EDGE REINFORCING SHALL BE CONTINUOUS 4 1/2" TYPICAL 1 1/2" 1 1/2" TYPICAL 4 1/2" INTERIOR CORNER EDGE FILL BLOCKOUT WITH CONCRETE AFTER COMPLETION OF ELEVATED FRAMING FACE OF COLUMN OR BASE PLATE 4 1/2" 1 1/2" t 2t MIN 1 1/2" 6" t 9" TYP. CLR. TYP. 1 2 TYPICAL FOOTING AND SLAB ON GRADE BLOCKOUT AT COLUMN DETAILS 2 TCC103 4 TYPICAL DRILLED PILE AND PILECAP SCHEDULE 3 TCF401 MOD.
