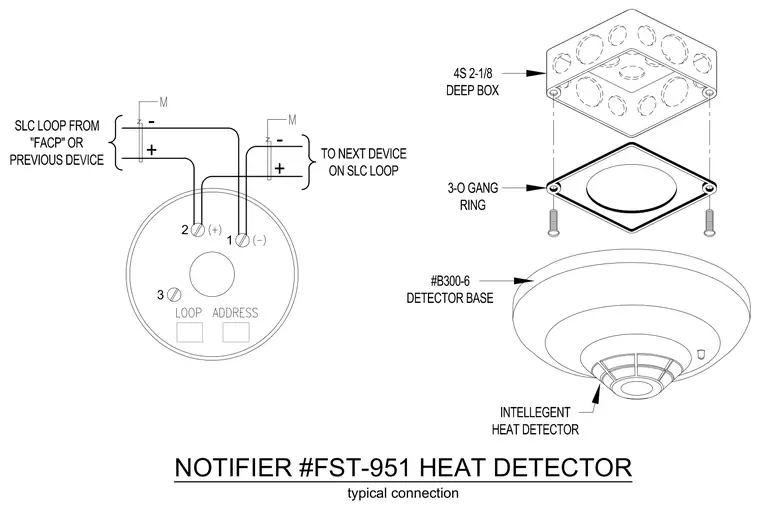

An intelligent heat detector base mounts to a three-gang ring secured onto a four-inch square two-and-one-eighth-inch deep electrical box. The signaling line circuit loop connects from the fire alarm control panel or a previous device into terminals one and two, while continuing onward to the next device on the loop.
- + - + NOTIFIER #FST-951 HEAT DETECTOR typical connection 2 3 1 SLC LOOP FROM "FACP" OR PREVIOUS DEVICE TO NEXT DEVICE ON SLC LOOP 4S 2-1/8 DEEP BOX 3-O GANG RING #B300-6 DETECTOR BASE INTELLEGENT HEAT DETECTOR
