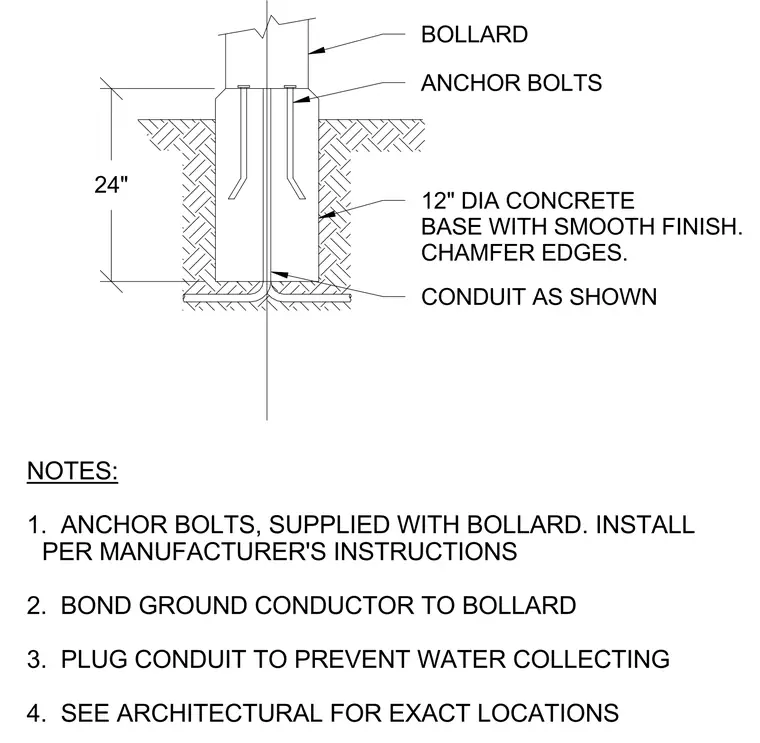

A lighting bollard mounts atop a twelve-inch diameter concrete base with a smooth finish and chamfered edges. Twenty-four-inch anchor bolts supplied with the bollard embed into the concrete according to the manufacturer's instructions. An electrical conduit runs vertically through the center of the base, and the conduit is plugged to prevent water collection. A ground conductor bonds directly to the bollard, and exact locations are coordinated with architectural drawings.
BOLLARD 12" DIA CONCRETE BASE WITH SMOOTH FINISH. CHAMFER EDGES. CONDUIT AS SHOWN NOTES: 1. ANCHOR BOLTS, SUPPLIED WITH BOLLARD. INSTALL PER MANUFACTURER'S INSTRUCTIONS 2. BOND GROUND CONDUCTOR TO BOLLARD 3. PLUG CONDUIT TO PREVENT WATER COLLECTING 4. SEE ARCHITECTURAL FOR EXACT LOCATIONS 24" ANCHOR BOLTS
