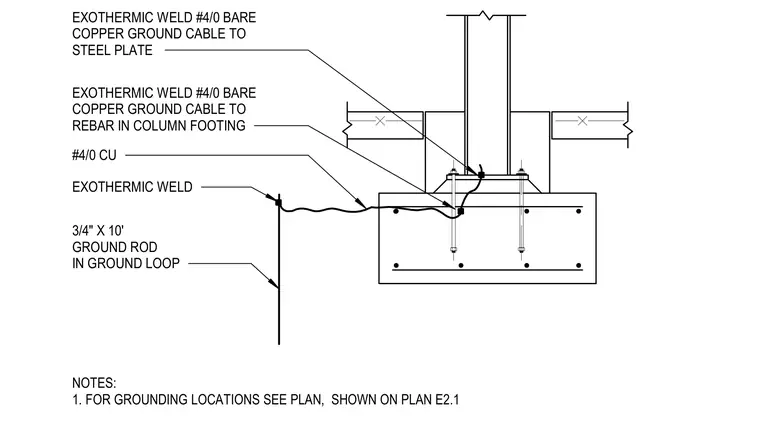

A number four-zero copper ground cable connects via exothermic weld to the structural steel plate at the base of the column. A separate exothermic weld ties the number four-zero bare copper ground cable into the reinforcing bar within the concrete column footing. A three-quarter-inch by ten-foot ground rod installed in the ground loop integrates with the underground copper cable network. Grounding locations are coordinated with the electrical plan.
NOTES: 1. FOR GROUNDING LOCATIONS SEE PLAN, SHOWN ON PLAN E2.1 3/4" X 10' GROUND ROD IN GROUND LOOP #4/0 CU EXOTHERMIC WELD #4/0 BARE COPPER GROUND CABLE TO STEEL PLATE EXOTHERMIC WELD EXOTHERMIC WELD #4/0 BARE COPPER GROUND CABLE TO REBAR IN COLUMN FOOTING
