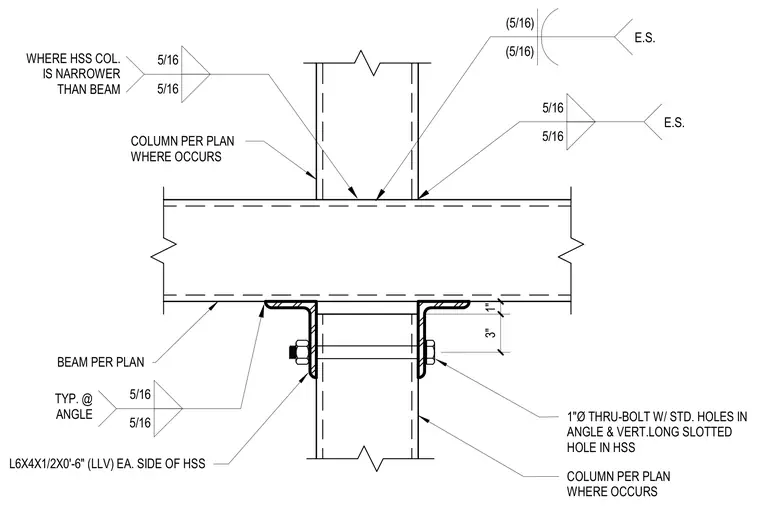

A beam per plan connects to an HSS column per plan using an L6x4x1/2 by 0'-6" long vertical leg vertical slot angle on each side of the HSS column. A 1-inch diameter thru-bolt passes through standard holes in the angle and a vertical long slotted hole in the HSS column. Five-sixteenth-inch fillet welds attach the angles on each side. Additional five-sixteenth-inch fillet welds secure the connection where the HSS column is narrower than the beam.
(5/16) (5/16) E.S. BEAM PER PLAN COLUMN PER PLAN WHERE OCCURS L6X4X1/2X0'-6" (LLV) EA. SIDE OF HSS 1"Ø THRU-BOLT W/ STD. HOLES IN ANGLE & VERT.LONG SLOTTED HOLE IN HSS COLUMN PER PLAN WHERE OCCURS 3" 1" 5/16 5/16 WHERE HSS COL. IS NARROWER THAN BEAM 5/16 5/16 E.S. 5/16 5/16 TYP. @ ANGLE
