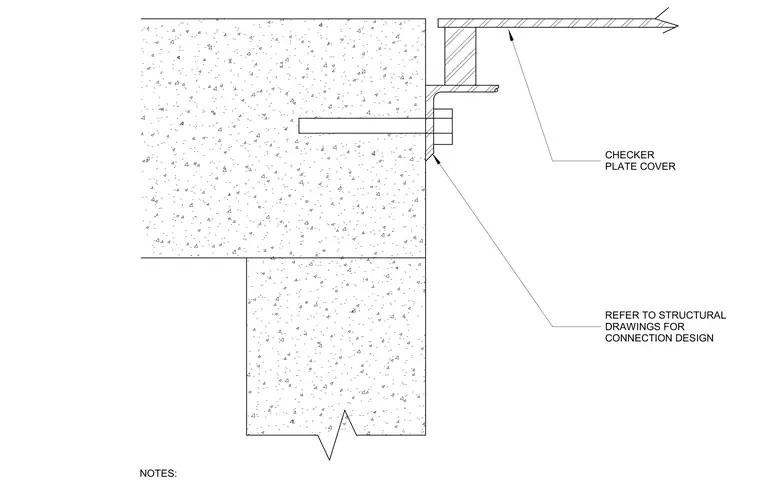

A checker plate cover rests flush against a concrete vault wall, supported by an angle profile anchored into the concrete via embedded anchor bolts. A steel plate member is welded beneath the cover to provide bearing support. Connection design details and structural requirements are deferred to structural drawings.
