Chiller Motor Control Center Power Riser Diagram

About this detail

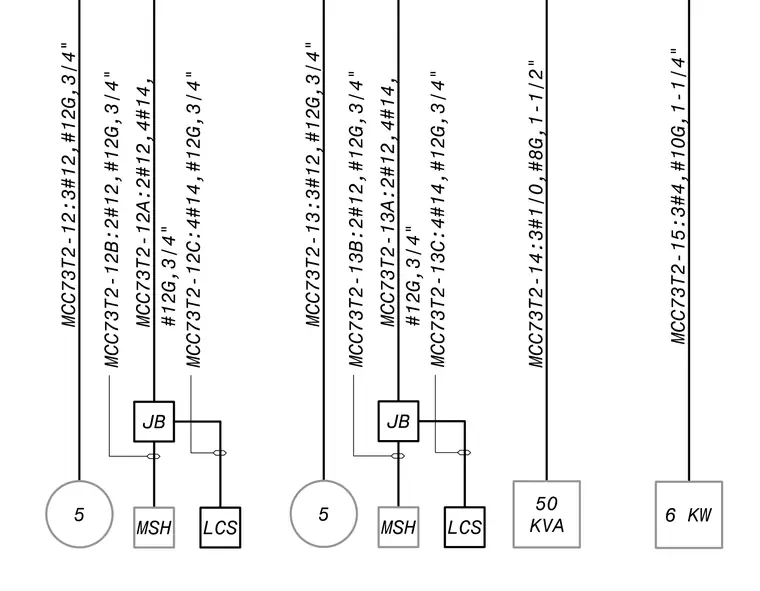

This electrical schematic details circuit feeds from motor control center MCC73T2 to local control stations, junction boxes, and equipment feeds. Conductor sizes, wire counts, and conduit diameters are specified for each run, including designations such as three #12 conductors with one #12 ground in three-quarter-inch conduit, and larger feeds for 50 KVA and 6 KW loads. Junction boxes and local control switches interface with the motor control center circuits according to the labeled schedules.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
