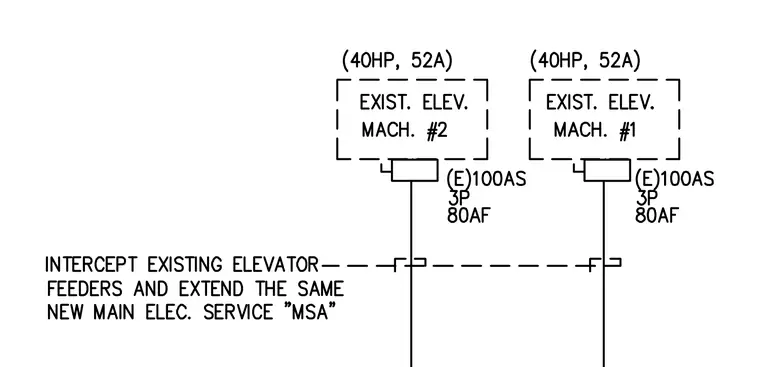

Two existing elevator machines rated at forty horsepower and fifty-two amperes are connected to existing one-hundred amp trip, eighty amp frame, three-pole switches. Existing elevator feeders are intercepted and extended to the new main electrical service designated as MSA. Feeder lines run vertically down from each machine connection through the interception point.
