Emergency Lighting Interface

About this detail

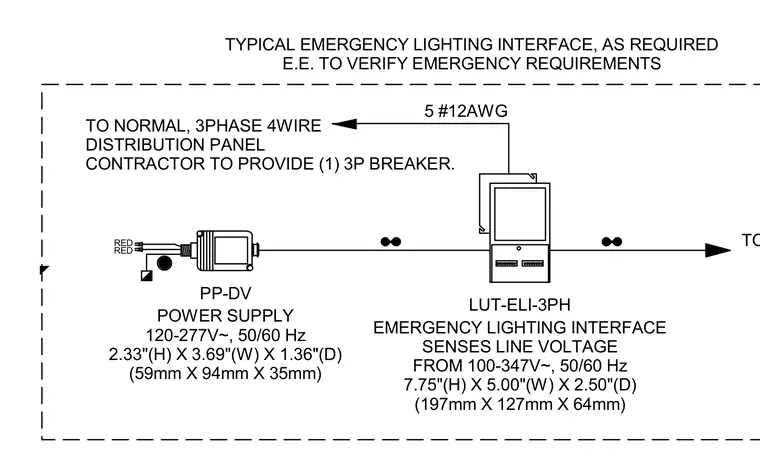

An emergency lighting interface module links a normal three-phase four-wire distribution panel using five #12 AWG wires to a PP-DV power supply rated for 120 to 277 volts alternating current at 50 or 60 hertz, measuring 2.33 inches high by 3.69 inches wide by 1.36 inches deep. The system incorporates a LUT-ELI-3PH emergency lighting interface unit that senses line voltage from 100 to 347 volts alternating current at 50 or 60 hertz, measuring 7.75 inches high by 5.00 inches wide by 2.50 inches deep. The electrical contractor provides one three-pole breaker at the distribution panel per the electrical engineer's emergency requirements.
