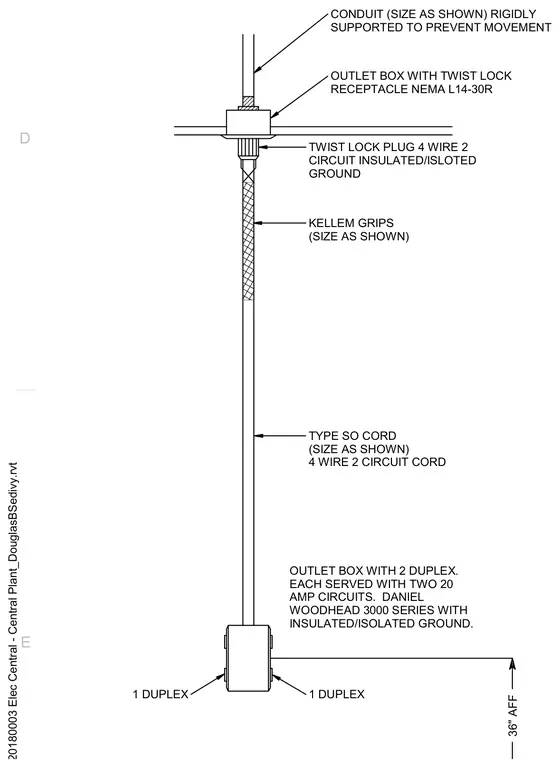

Rigidly supported conduit feeds an outlet box equipped with a NEMA L14-30R twist-lock receptacle. A matching twist-lock plug connects a four-wire, two-circuit Type SO cord, supported by a Kellem grip. The drop cord terminates at thirty-six inches above finished floor in a Daniel Woodhead 3000 Series outlet box with two duplex receptacles and an isolated ground, each served by two twenty-amp circuits.
36" AFF OUTLET BOX WITH 2 DUPLEX. EACH SERVED WITH TWO 20 AMP CIRCUITS. DANIEL WOODHEAD 3000 SERIES WITH INSULATED/ISOLATED GROUND. CONDUIT (SIZE AS SHOWN) RIGIDLY SUPPORTED TO PREVENT MOVEMENT OUTLET BOX WITH TWIST LOCK RECEPTACLE NEMA L14-30R TWIST LOCK PLUG 4 WIRE 2 CIRCUIT INSULATED/ISLOTED GROUND KELLEM GRIPS (SIZE AS SHOWN) TYPE SO CORD (SIZE AS SHOWN) 4 WIRE 2 CIRCUIT CORD 1 DUPLEX 1 DUPLEX E D
