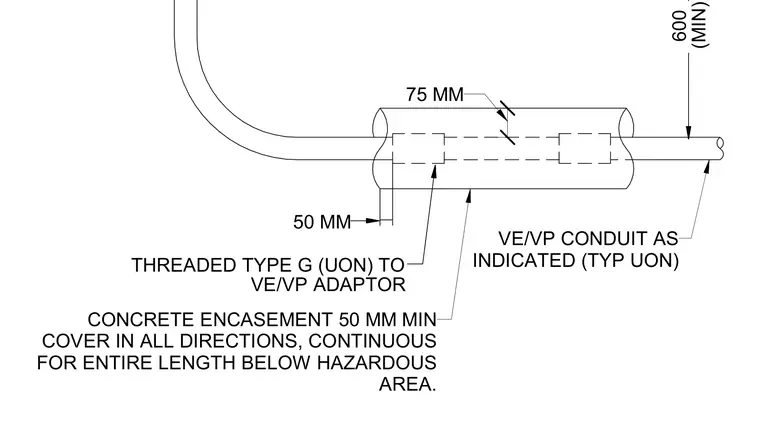

An electrical conduit connects via a threaded Type G adaptor to a VE/VP conduit as indicated typically unless otherwise noted. The assembly is surrounded by a continuous concrete encasement providing a minimum of 50 millimeters of cover in all directions for the entire length below a hazardous area. The conduit maintains a minimum depth of 600 millimeters with a 75 millimeter spacing dimension.
600 (MIN) THREADED TYPE G (UON) TO VE/VP ADAPTOR 50 MM CONCRETE ENCASEMENT 50 MM MIN COVER IN ALL DIRECTIONS, CONTINUOUS FOR ENTIRE LENGTH BELOW HAZARDOUS AREA. VE/VP CONDUIT AS INDICATED (TYP UON) 75 MM
