SCB PLC I/O Drop 9 Control Panel Wiring Diagram

About this detail

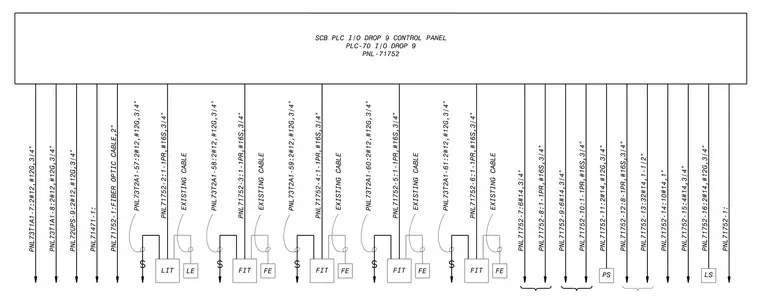

Wiring connections for the SCB PLC I/O Drop 9 control panel, designated as PLC-70 PNL-71752. Numerous conduit runs and conductor specifications connect to the panel, including multi-conductor cables, fiber optic cable, and shielded twisted pairs. Specific circuits route through conduits ranging from three-quarter inch to one-and-a-half inch diameters, with wire sizes including number 14 and number 12 American Wire Gauge conductors. Several connections interface with existing cables linked to field instruments and devices such as LIT, LE, FIT, FE, PS, and LS.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
