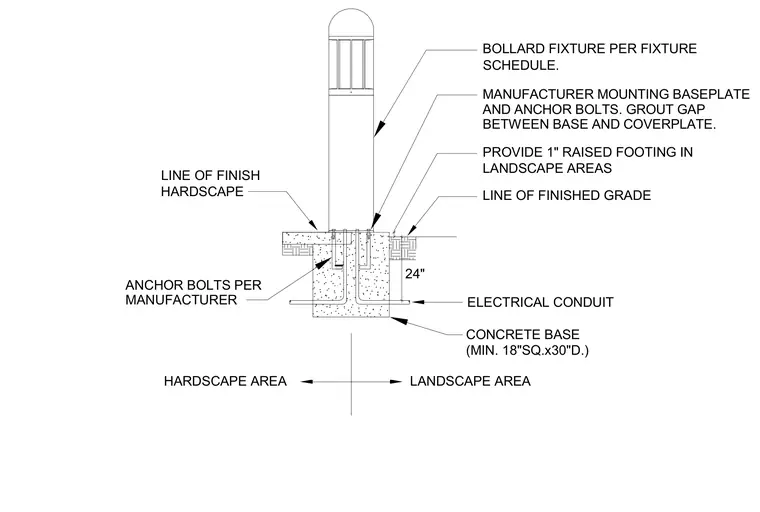

A bollard fixture mounts to a concrete base measuring a minimum of 18 inches square by 30 inches deep using manufacturer-supplied anchor bolts and a mounting baseplate. An electrical conduit feeds into the concrete footing from the side. In landscape areas, the concrete footing features a 1-inch raised footing above the line of finished grade, while hardscape installations align flush with the finish hardscape. A grout gap is maintained between the base and the coverplate.
LINE OF FINISHED GRADE ELECTRICAL CONDUIT BOLLARD FIXTURE PER FIXTURE SCHEDULE. PROVIDE 1" RAISED FOOTING IN LANDSCAPE AREAS LANDSCAPE AREA HARDSCAPE AREA ANCHOR BOLTS PER MANUFACTURER LINE OF FINISH HARDSCAPE CONCRETE BASE (MIN. 18"SQ.x30"D.) 24" MANUFACTURER MOUNTING BASEPLATE AND ANCHOR BOLTS. GROUT GAP BETWEEN BASE AND COVERPLATE.
