Electrical One-Line Diagram with Transformer and Distribution Panels

About this detail

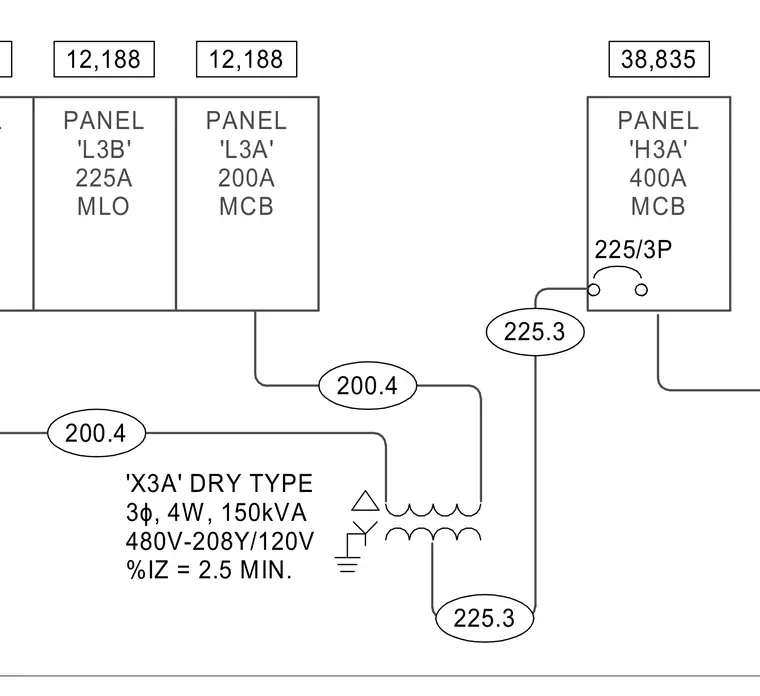

An electrical one-line diagram details a 150 kVA three-phase four-wire dry-type transformer designated as X3A, stepping down 480 volts to 208Y/120 volts with a minimum impedance of 2.5 percent. The transformer feeds multiple electrical panels including a 200 amp main circuit breaker panel L3A, a 225 amp main lug only panel L3B, and a 400 amp main circuit breaker panel H3A. Feeder sizing, load currents, and circuit breaker ratings are indicated throughout the distribution path.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
