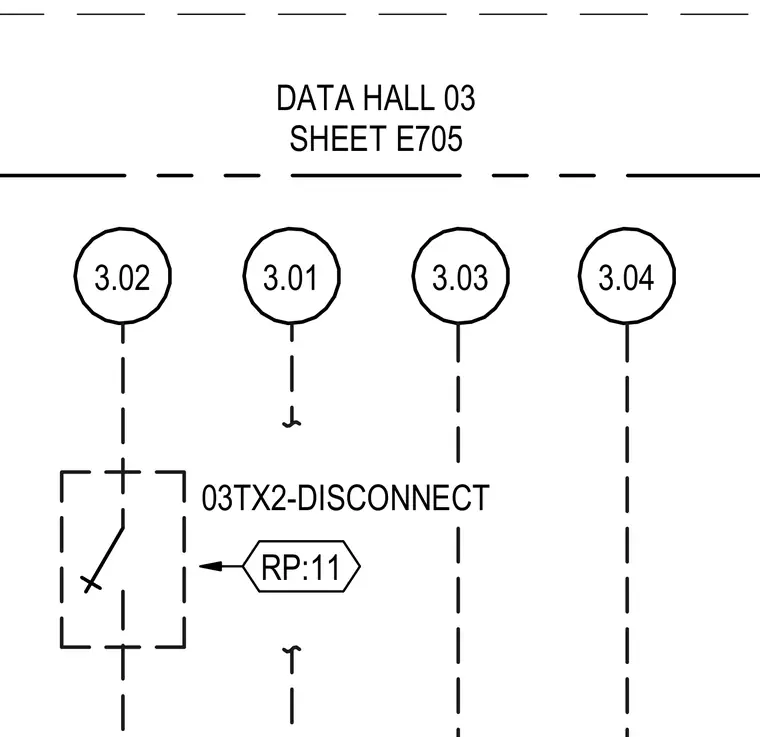

Electrical schematic diagram illustrating transformer disconnect switch 03TX2 fed from panelboard RP:11 in Data Hall 03. The single line layout shows circuit connections and tag numbers for equipment coordination.
