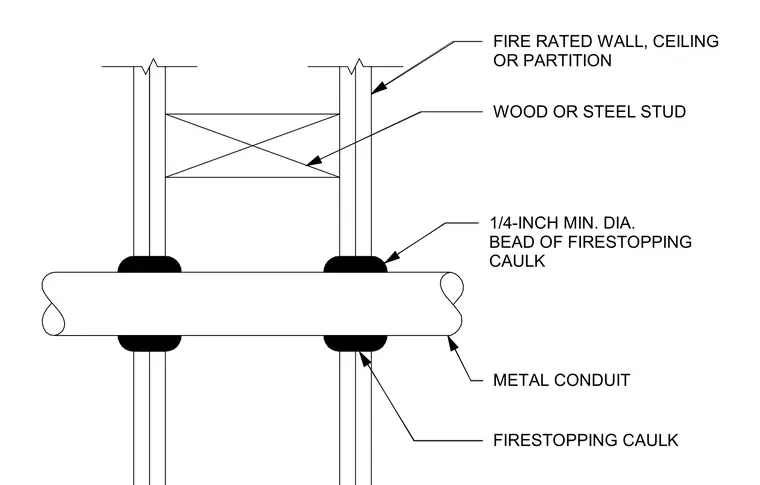

A metal conduit penetrates a fire-rated wall, ceiling, or partition framed by wood or steel studs. The annular space around the conduit is sealed with a one-fourth-inch minimum diameter bead of firestopping caulk on both sides of the assembly.
1/4-INCH MIN. DIA. BEAD OF FIRESTOPPING CAULK METAL CONDUIT FIRESTOPPING CAULK WOOD OR STEEL STUD FIRE RATED WALL, CEILING OR PARTITION
