A recessed downlight fixture is installed within a suspended ceiling lay-in grid using a fixture bar hanger assembly. The fixture secures to the main T-bar runner on all four sides with screws. Slack number twelve safety wires tie the fixture back to the building structure. Ceiling hanger wire sizes and structural attachment methods are coordinated per architectural and structural drawings.

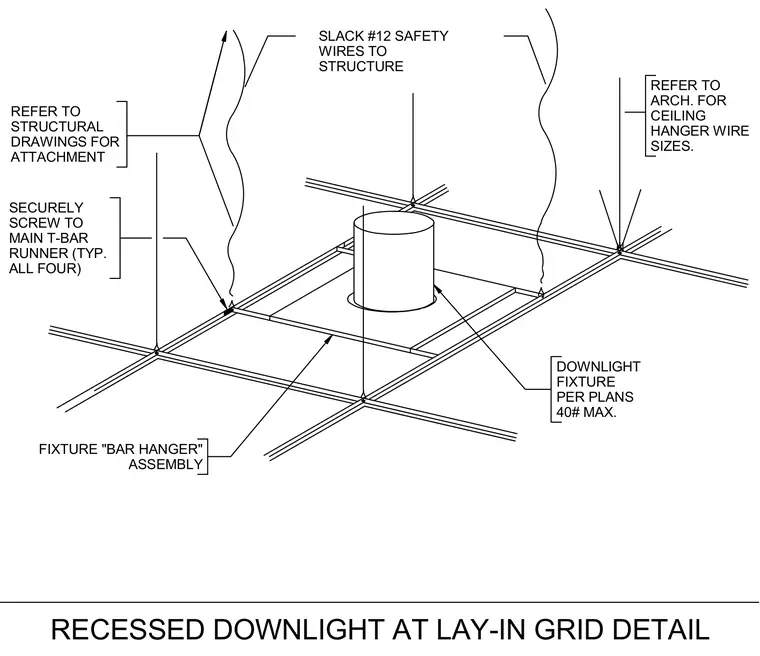

ASSEMBLY FIXTURE "BAR HANGER" SLACK #12 SAFETY WIRES TO STRUCTURE REFER TO STRUCTURAL DRAWINGS FOR DOWNLIGHT FIXTURE PER PLANS 40# MAX. REFER TO ARCH. FOR CEILING HANGER WIRE SIZES. ATTACHMENT SECURELY SCREW TO MAIN T-BAR RUNNER (TYP. ALL FOUR) RECESSED DOWNLIGHT AT LAY-IN GRID DETAIL
