IDF Room Equipment Rack and Cable Tray Anchorage

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Walls Floors / Slabs Millwork / Casework Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage Rebar Splice / Development

About this detail

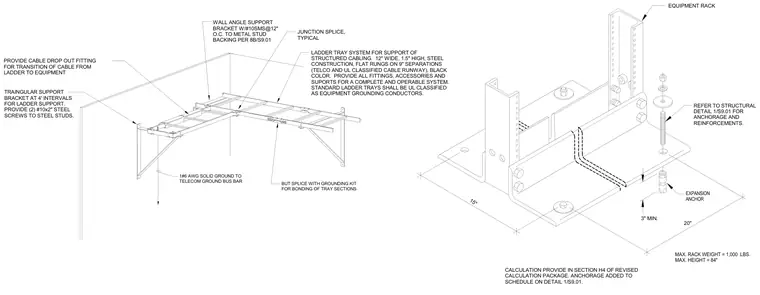

Seismic and structural anchorage for a telecommunication equipment rack along with the overhead ladder tray mounting assembly. The equipment rack base plate is anchored to the floor using expansion anchors with a minimum depth of 3 inches, designed for a maximum rack weight of 1,000 pounds and an 84-inch maximum height. Triangular support brackets and wall angle brackets secure the 12-inch wide steel ladder tray system to cold-formed metal stud backing using number 10 sheet metal screws at 12 inches on center. Butt splices with grounding kits ensure electrical continuity and bonding across tray sections, while a number 6 American Wire Gauge solid copper wire connects the assembly to the telecommunication ground bus bar.
