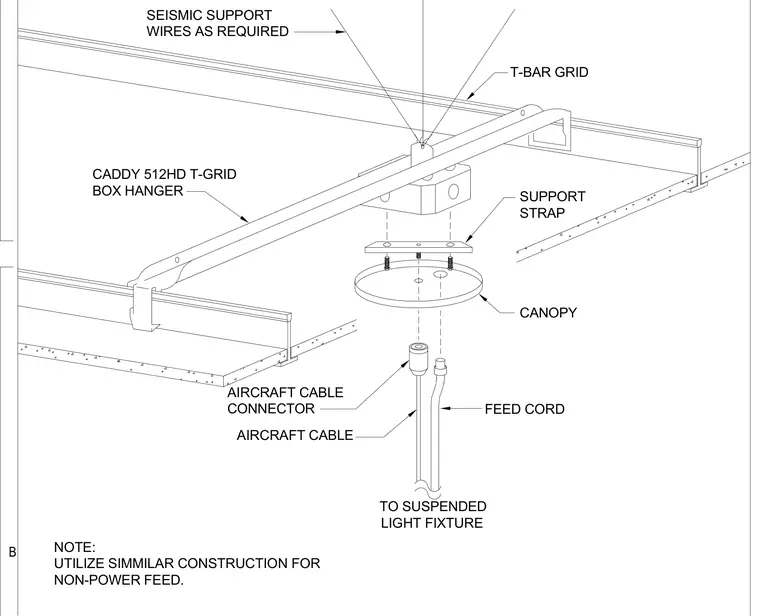

An indirect light fixture is suspended from a T-bar grid utilizing a Caddy 512HD T-grid box hanger clamped directly to the grid runners. Seismic support wires are anchored to the box hanger as required for lateral stability. A support strap secures the circular canopy against the ceiling junction, while an aircraft cable connector and aircraft cable carry the fixture load. A feed cord runs alongside the suspension cable down to the suspended light fixture. Similar construction is utilized for non-power feed locations.
T-BAR GRID AIRCRAFT CABLE CONNECTOR AIRCRAFT CABLE FEED CORD CADDY 512HD T-GRID BOX HANGER CANOPY SUPPORT STRAP SEISMIC SUPPORT WIRES AS REQUIRED TO SUSPENDED LIGHT FIXTURE NOTE: UTILIZE SIMMILAR CONSTRUCTION FOR NON-POWER FEED. B
