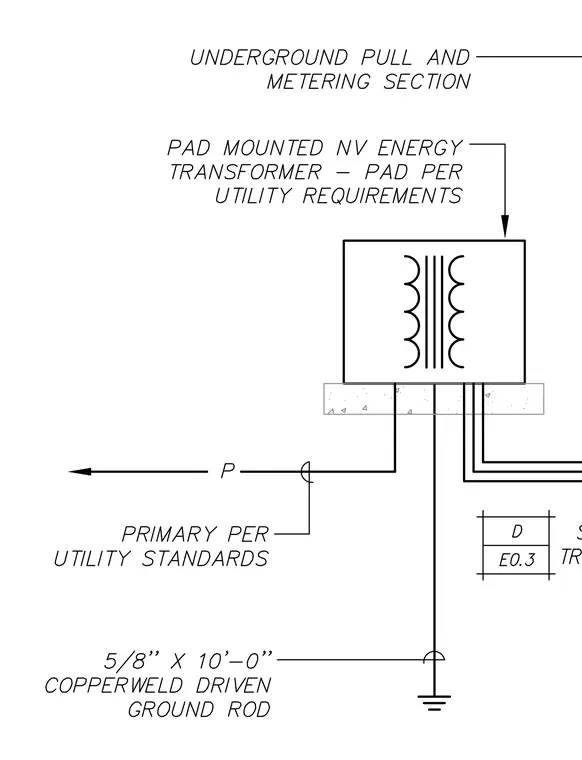

An exterior pad-mounted NV Energy transformer sits upon a concrete pad constructed per utility requirements. The assembly connects to an underground pull and metering section with primary service routed per utility standards. A 5/8-inch by 10-foot copperweld driven ground rod provides grounding for the installation.
