Electrical · E-Z56TB

Single Door Access Control Rough-In and Conduit Detail

Elements

About this detail

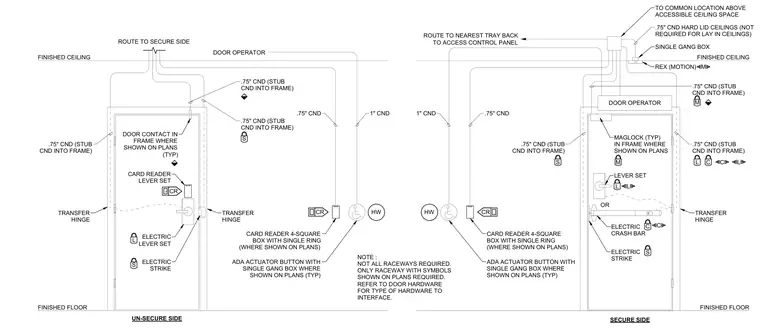

This diagram details the electrical rough-in and conduit routing for a single door installation equipped with access control devices. Three-quarter inch and one-inch conduits stub into the door frame for connections to door contacts, transfer hinges, card readers, electric lever sets, and electric strikes. Additional raceways accommodate ADA actuator buttons with single gang boxes, request-to-exit motion sensors, and overhead door operators. Conduits route upward through finished ceilings to nearest cable trays and back to the access control panel above accessible ceiling spaces. Not all raceways are required; installations follow specific symbols shown on plans and coordinate with designated door hardware types.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
