Typical Plugmold Detail Double Channel

Materials

About this detail

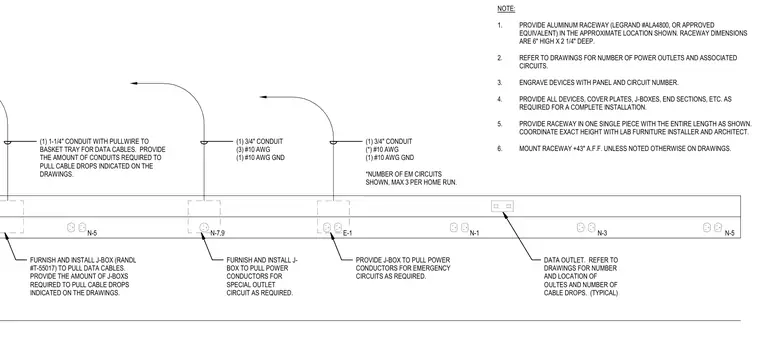

This electrical detail shows a double channel aluminum raceway measuring 6 inches high by 2-1/4 inches deep, mounted at 43 inches above finished floor unless noted otherwise. The assembly includes one 1-1/4 inch conduit with pullwire running to a basket tray for data cables, along with junction boxes for data outlets and special outlet circuits. Power is supplied via 3/4 inch conduits housing three #10 AWG conductors and one #10 AWG ground, as well as emergency circuits with a maximum of three per home run. All wiring devices, cover plates, end sections, and junction boxes are furnished for a complete installation, with devices engraved with their respective panel and circuit numbers.
