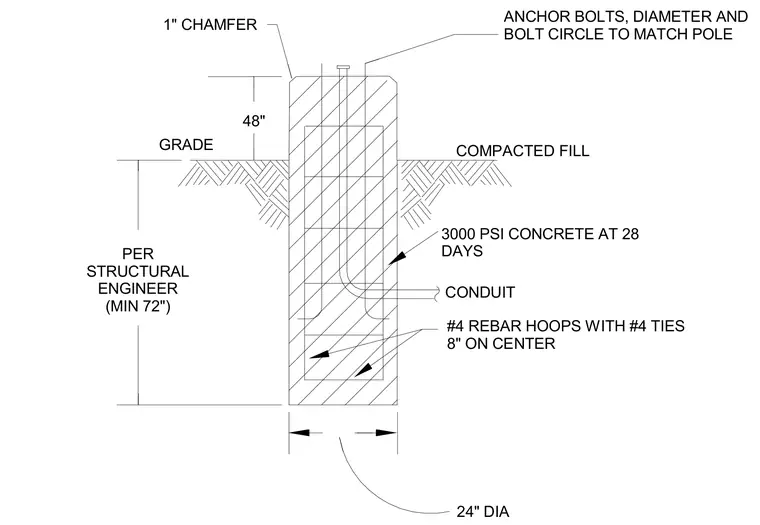

The concrete pole base consists of a twenty-four-inch diameter cast-in-place pier utilizing 3000 PSI concrete at twenty-eight days. Internal reinforcement includes number four rebar hoops with number four ties spaced eight inches on center, surrounded by compacted fill. Anchor bolts are embedded vertically with diameter and bolt circle matched to the specific light pole, accompanied by a conduit entry elbow. The top of the pier features a one-inch chamfer at the perimeter and extends forty-eight inches above grade, with a total depth of a minimum of seventy-two inches per the structural engineer.
24" DIA 48" CONDUIT ANCHOR BOLTS, DIAMETER AND BOLT CIRCLE TO MATCH POLE COMPACTED FILL 3000 PSI CONCRETE AT 28 DAYS #4 REBAR HOOPS WITH #4 TIES 8" ON CENTER 1" CHAMFER GRADE PER STRUCTURAL ENGINEER (MIN 72")
