The conduit run consists of four four-inch conduits and one four-inch conduit equipped with MaxCell innerduct and pull strings installed by the contractor. Two 288-strand single-mode fiber cables route back to the new utility vault at the Otech Business Building for splicing into the existing campus fiber network. An additional four-inch spare conduit with a pull string is included in the assembly.

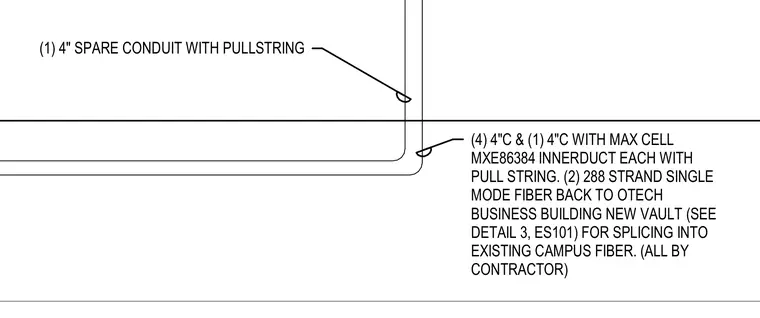

(4) 4"C & (1) 4"C WITH MAX CELL MXE86384 INNERDUCT EACH WITH PULL STRING. (2) 288 STRAND SINGLE MODE FIBER BACK TO OTECH BUSINESS BUILDING NEW VAULT (SEE DETAIL 3, ES101) FOR SPLICING INTO EXISTING CAMPUS FIBER. (ALL BY CONTRACTOR) (1) 4" SPARE CONDUIT WITH PULLSTRING
