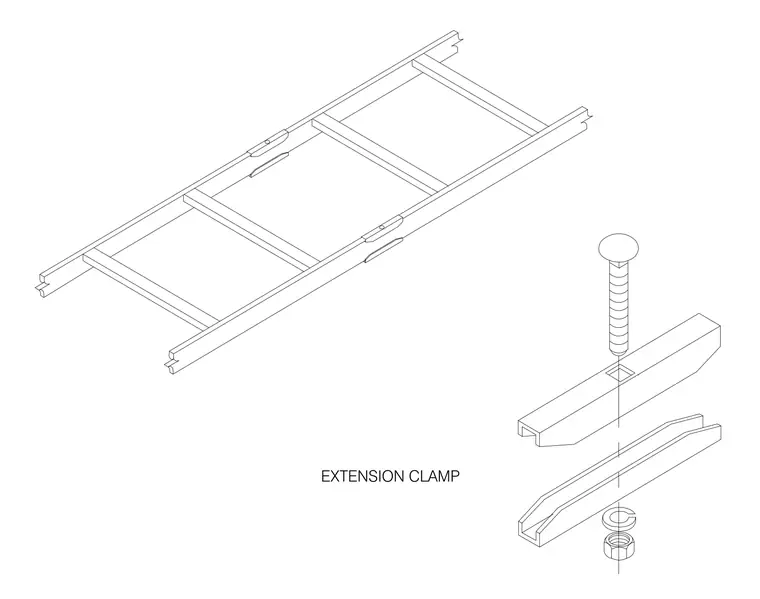

An extension clamp assembly connects and secures cable runway sections using a carriage bolt, clamp bars, lock washer, and nut. The bolt passes through the aligned channel components to fasten the assembly together. This connection method provides structural continuity for suspended cable tray runs.
