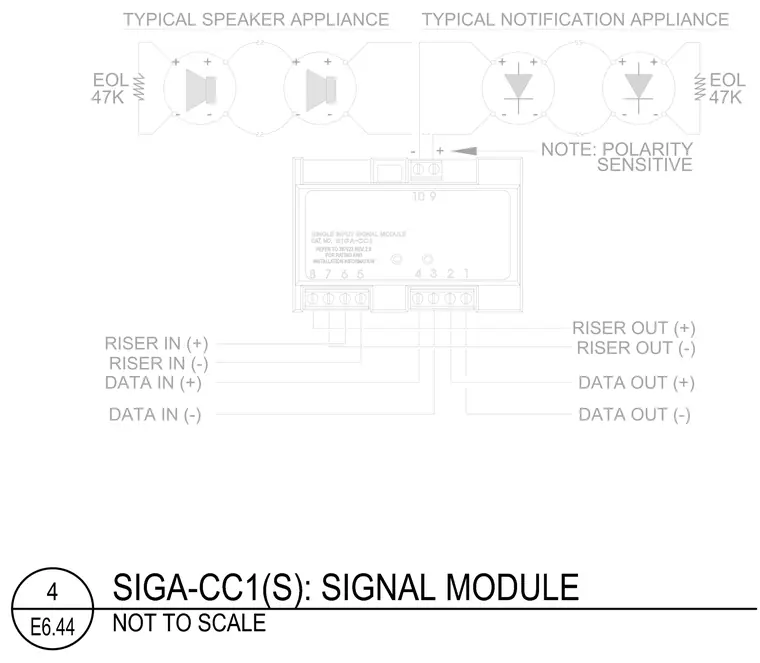

Wiring connections for a single input signal module, cataloged as catalog number SIGA-CC1, interface with typical speaker and notification appliances. Riser in and data in connections wire into terminals on the module while riser out and data out lines continue the circuit. End-of-line resistors rated at forty-seven kilohms terminate both the speaker and notification appliance loops. A note indicates that the system is polarity sensitive.
TYPICAL SPEAKER APPLIANCE RISER IN (+) RISER IN (-) DATA IN (+) DATA IN (-) 47K EOL + + - - NOTE: POLARITY TYPICAL NOTIFICATION APPLIANCE + - + + - - RISER OUT (+) RISER OUT (-) DATA OUT (+) DATA OUT (-) + + SENSITIVE - - 47K EOL + + - -
