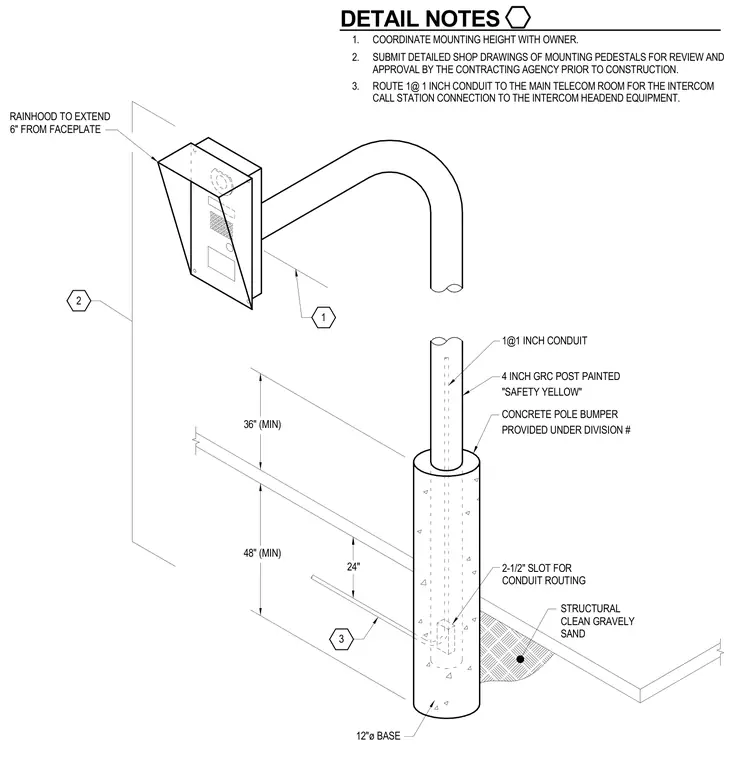

An exterior card reader and intercom call station are mounted on a four-inch galvanized rigid conduit post painted safety yellow. A protective rainhood extends six inches from the faceplate, while internal routing consists of a one-inch conduit connecting to the main telecom room. The post is anchored within a twelve-inch diameter concrete pole bumper featuring a 2-1/2 inch slot for conduit routing and bedded on structural clean gravelly sand. Mounting height is coordinated with the owner, and shop drawings require approval prior to construction.
1. COORDINATE MOUNTING HEIGHT WITH OWNER. 2. SUBMIT DETAILED SHOP DRAWINGS OF MOUNTING PEDESTALS FOR REVIEW AND APPROVAL BY THE CONTRACTING AGENCY PRIOR TO CONSTRUCTION. 3. ROUTE 1@ 1 INCH CONDUIT TO THE MAIN TELECOM ROOM FOR THE INTERCOM CALL STATION CONNECTION TO THE INTERCOM HEADEND EQUIPMENT. 1@1 INCH CONDUIT 4 INCH GRC POST PAINTED "SAFETY YELLOW" CONCRETE POLE BUMPER PROVIDED UNDER DIVISION # 12"ø BASE 24" 48" (MIN) 1 2 3 DETAIL NOTES 2-1/2" SLOT FOR CONDUIT ROUTING STRUCTURAL CLEAN GRAVELY SAND RAINHOOD TO EXTEND 6" FROM FACEPLATE 36" (MIN)
