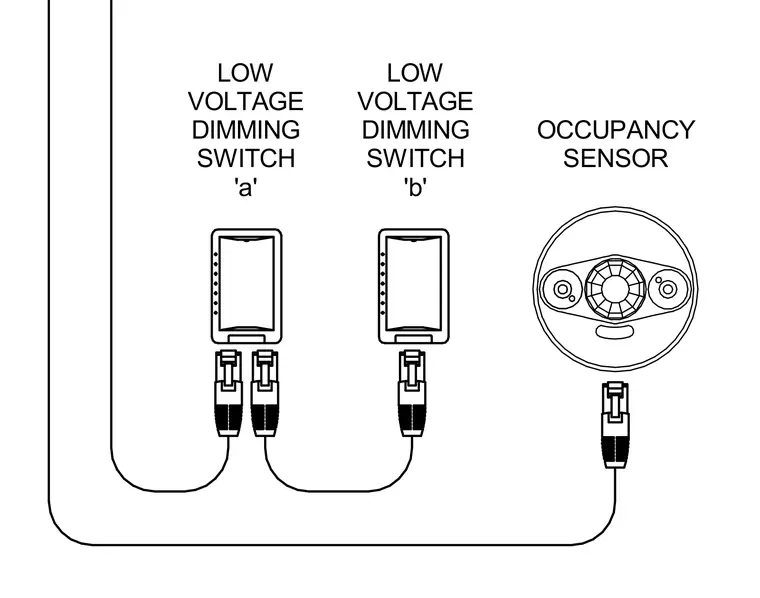

Two low voltage dimming switches labeled 'a' and 'b' connect alongside a ceiling-mounted occupancy sensor via low voltage cabling and modular connectors.
