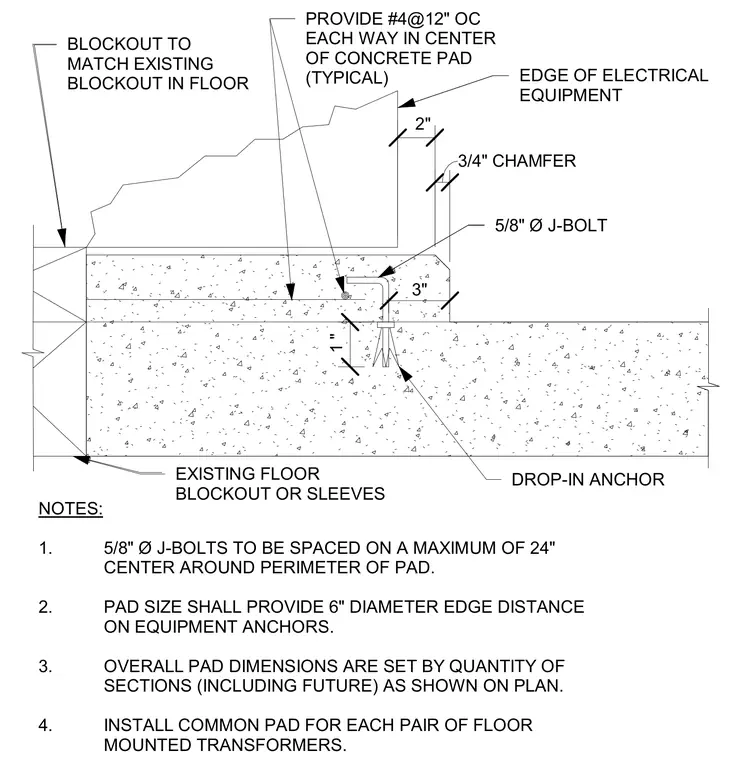

A reinforced concrete housekeeping pad sits atop an existing concrete floor slab with an integrated blockout to secure floor-mounted electrical equipment. The pad is reinforced with number four rebar placed at twelve inches on center each way in the center of the pad, and features a three-quarter-inch chamfer along its top perimeter edge. Five-eighths-inch diameter J-bolts are anchored into the pad at a maximum spacing of twenty-four inches on center around the perimeter. Drop-in anchors and existing floor blockouts or sleeves tie the new pad assembly directly to the existing structural floor.
5/8" Ø J-BOLT 3/4" CHAMFER 2" EDGE OF ELECTRICAL EQUIPMENT PROVIDE #4@12" OC EACH WAY IN CENTER OF CONCRETE PAD (TYPICAL) BLOCKOUT TO MATCH EXISTING BLOCKOUT IN FLOOR NOTES: 1. 5/8" Ø J-BOLTS TO BE SPACED ON A MAXIMUM OF 24" CENTER AROUND PERIMETER OF PAD. 2. PAD SIZE SHALL PROVIDE 6" DIAMETER EDGE DISTANCE ON EQUIPMENT ANCHORS. 3. OVERALL PAD DIMENSIONS ARE SET BY QUANTITY OF SECTIONS (INCLUDING FUTURE) AS SHOWN ON PLAN. 4. INSTALL COMMON PAD FOR EACH PAIR OF FLOOR MOUNTED TRANSFORMERS. 3" DROP-IN ANCHOR EXISTING FLOOR BLOCKOUT OR SLEEVES 1 "
