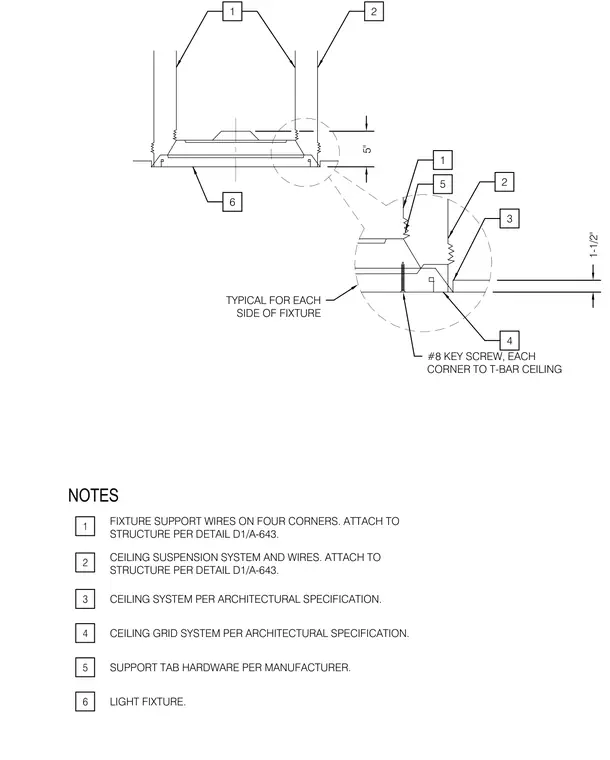

A recessed light fixture is supported by fixture support wires on four corners attached to the building structure. The ceiling suspension system and wires are also anchored to the structure per architectural specifications. A #8 key screw secures each corner of the fixture to the T-bar ceiling grid system. Support tab hardware is installed per the manufacturer's recommendations.
1-1/2" 5" #8 KEY SCREW, EACH CORNER TO T-BAR CEILING TYPICAL FOR EACH SIDE OF FIXTURE NOTES FIXTURE SUPPORT WIRES ON FOUR CORNERS. ATTACH TO STRUCTURE PER DETAIL D1/A-643. CEILING SUSPENSION SYSTEM AND WIRES. ATTACH TO STRUCTURE PER DETAIL D1/A-643. CEILING SYSTEM PER ARCHITECTURAL SPECIFICATION. CEILING GRID SYSTEM PER ARCHITECTURAL SPECIFICATION. SUPPORT TAB HARDWARE PER MANUFACTURER. LIGHT FIXTURE. 1 2 3 4 5 6 1 2 1 2 3 4 5 6
