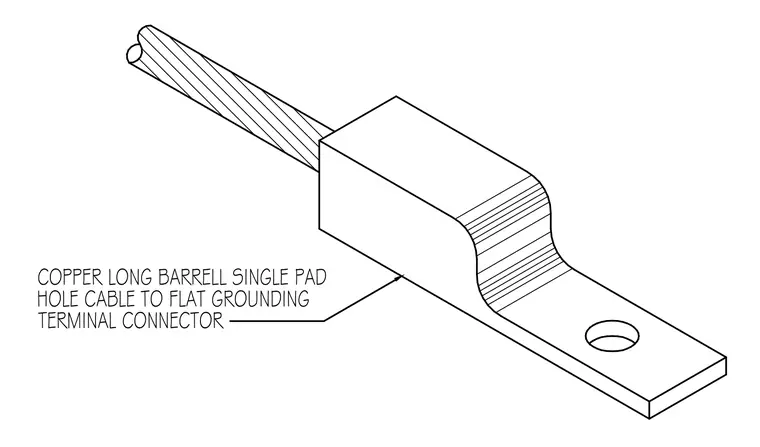

This assembly consists of a copper long barrel single-hole grounding terminal connector secured to a stranded copper conductor. The connector features a flat pad with a single bolt hole for attachment to a grounding busbar or equipment chassis. The barrel provides a secure mechanical and electrical connection to the cable.
