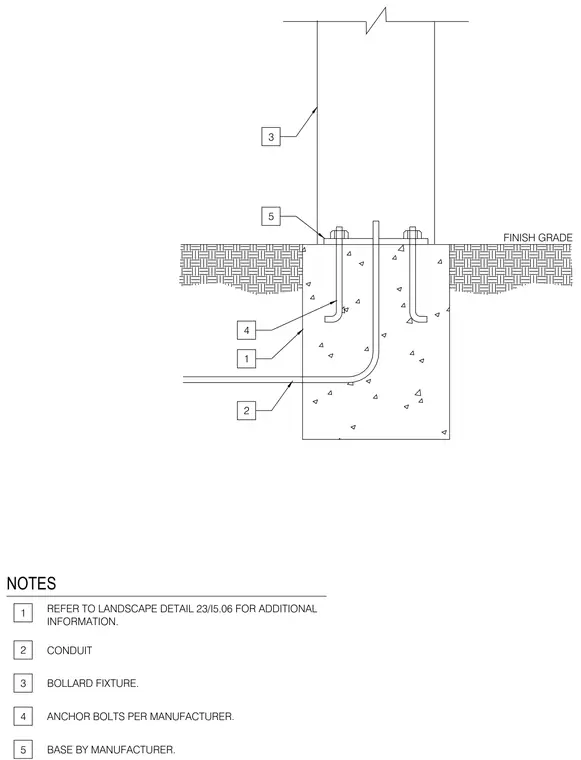

A conduit bollard fixture is mounted to a concrete footing using anchor bolts per the manufacturer and a manufacturer-provided base plate. Electrical conduit enters through the concrete footing and extends up into the bollard shaft. Finish grade aligns with the top of the concrete footing.
2 3 1 4 5 NOTES REFER TO LANDSCAPE DETAIL 23/I5.06 FOR ADDITIONAL INFORMATION. CONDUIT BOLLARD FIXTURE. ANCHOR BOLTS PER MANUFACTURER. BASE BY MANUFACTURER. 1 2 3 4 5 FINISH GRADE
