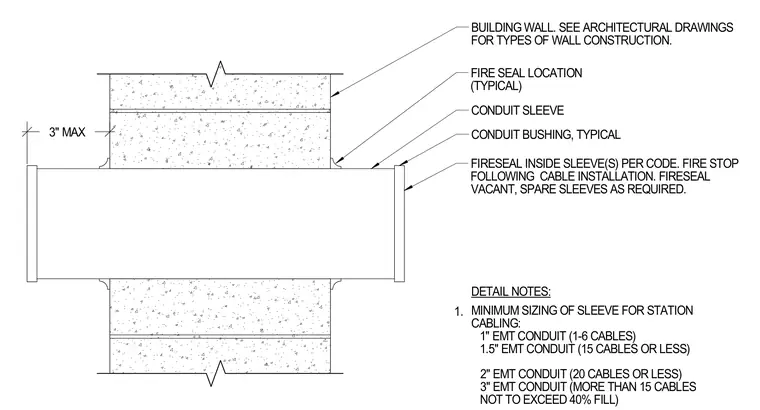

A conduit sleeve penetrates a building wall with typical conduit bushings installed at each end. Fireseal is applied inside the sleeve per code following cable installation, and vacant or spare sleeves are firesealed as required. A maximum distance of three inches is maintained at the fire seal location. Minimum sizing of the sleeve for station cabling ranges from one-inch electrical metallic tubing for one to six cables up to three-inch electrical metallic tubing for more than fifteen cables, ensuring fill does not exceed forty percent.
CONDUIT BUSHING, TYPICAL MINIMUM SIZING OF SLEEVE FOR STATION CABLING: 1" EMT CONDUIT (1-6 CABLES) 1.5" EMT CONDUIT (15 CABLES OR LESS) 2" EMT CONDUIT (20 CABLES OR LESS) 3" EMT CONDUIT (MORE THAN 15 CABLES NOT TO EXCEED 40% FILL) FIRESEAL INSIDE SLEEVE(S) PER CODE. FIRE STOP FOLLOWING CABLE INSTALLATION. FIRESEAL VACANT, SPARE SLEEVES AS REQUIRED. BUILDING WALL. SEE ARCHITECTURAL DRAWINGS FOR TYPES OF WALL CONSTRUCTION. (TYPICAL) FIRE SEAL LOCATION 3" MAX 1. CONDUIT SLEEVE DETAIL NOTES:
