The assembly comprises a stainless steel wall bracket secured with a 3/8-inch stainless steel button head fastener, connected to a 2000V rated insulator. Surfaces are cleaned to bright metal and coated with antioxidant joint compound prior to making connections. The support is mounted twelve inches above finished grade unless noted otherwise.

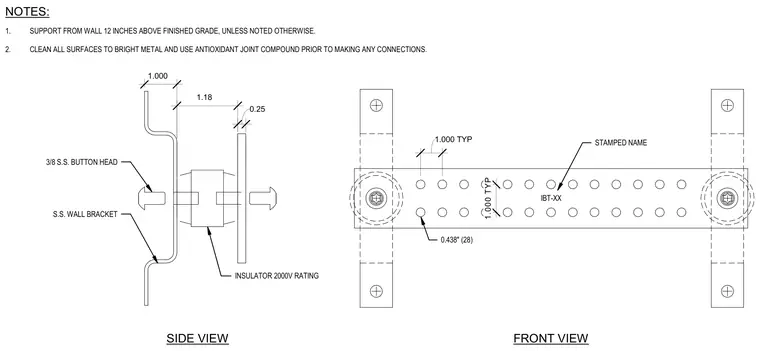

NOTES: 1. SUPPORT FROM WALL 12 INCHES ABOVE FINISHED GRADE, UNLESS NOTED OTHERWISE. 2. CLEAN ALL SURFACES TO BRIGHT METAL AND USE ANTIOXIDANT JOINT COMPOUND PRIOR TO MAKING ANY CONNECTIONS. STAMPED NAME IBT-XX FRONT VIEW SIDE VIEW 3/8 S.S. BUTTON HEAD INSULATOR 2000V RATING S.S. WALL BRACKET 1.000 1.18 0.25 1.000 TYP 1.000 TYP 0.438" (28)
