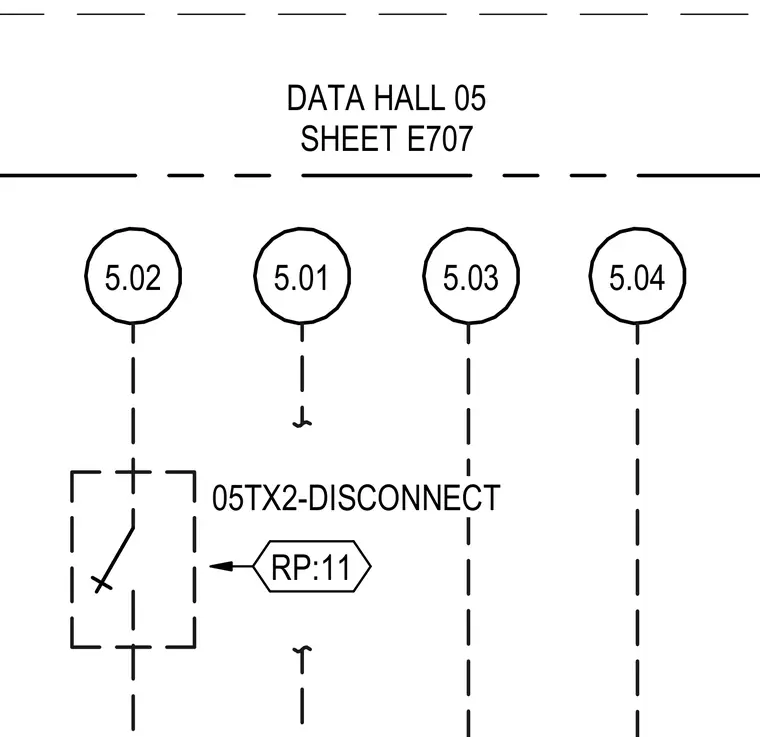

An electrical single-line diagram indicating the configuration for the transformer disconnect switch designated as 05TX2-DISCONNECT, powered from panel RP:11. The layout includes dashed routing paths with reference numbers 5.01, 5.02, 5.03, and 5.04 for coordination within Data Hall 05 on sheet E707.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
