Electrical · E-YK2ZC

Grade 5 Flat Washer

About this detail

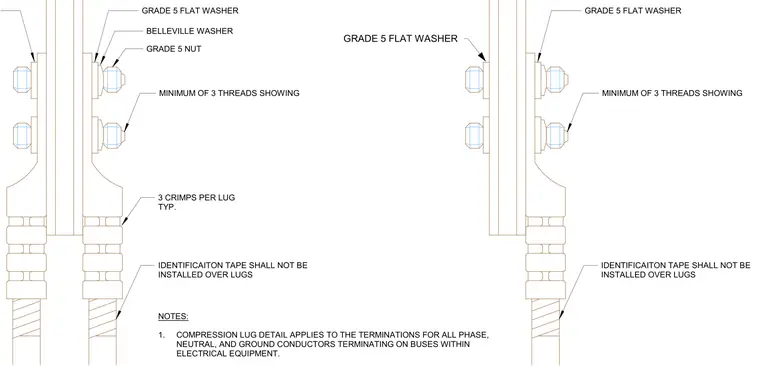

This electrical detail shows the compression lug termination assembly for phase, neutral, and ground conductors connecting to buses within electrical equipment. The connection is secured with Grade 5 bolts featuring a flat washer, Belleville washer, and Grade 5 nut, ensuring a minimum of three threads showing past the nut. Lugs require three typical crimps, and identification tape must not be installed over the lugs.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
