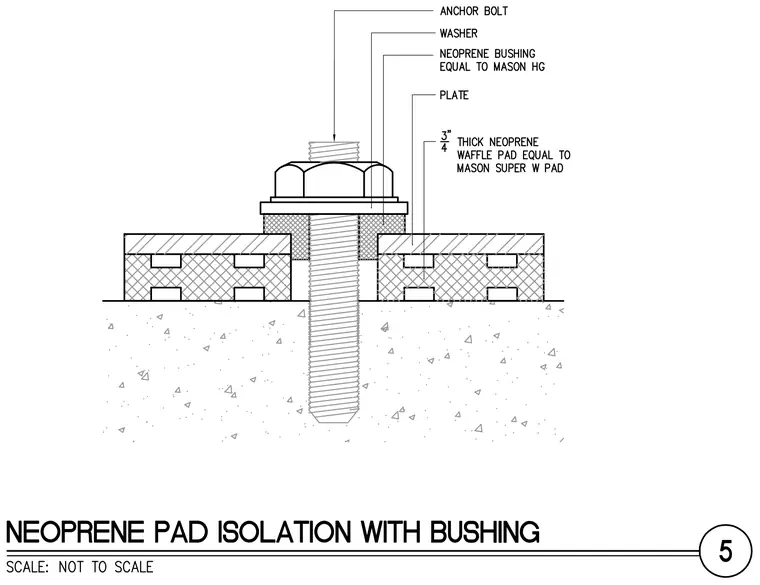

Equipment isolation detail anchored to a concrete substrate using a threaded anchor bolt secured with a washer and nut. The assembly incorporates a three-quarter-inch thick neoprene waffle pad equal to a Mason Super W pad beneath a plate. A neoprene bushing equal to Mason HG isolates the bolt shank from the surrounding plate and pad assembly.
