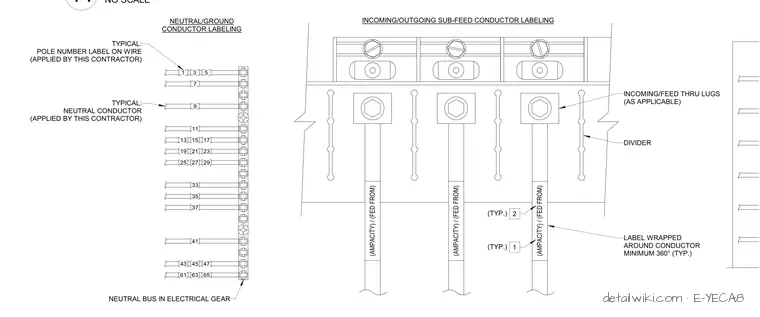

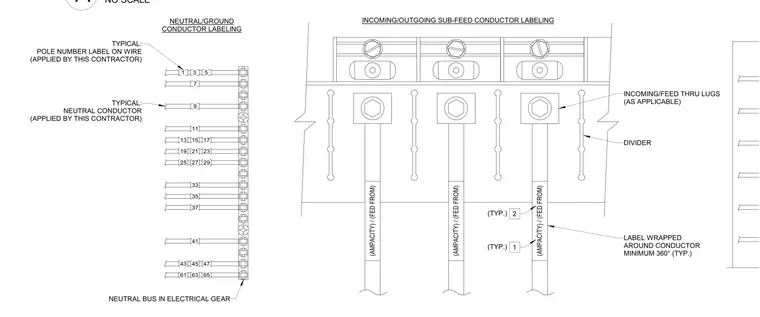

Neutral and ground conductors attach to the neutral bus in electrical gear with pole number and neutral conductor labels applied by the contractor. Incoming and outgoing sub-feed conductors connect to incoming or feed-thru lugs separated by dividers. Each conductor receives a label wrapped around the wire for a minimum of three hundred sixty degrees, indicating ampacity and source fed from information.
1 61 63 65 43 45 47 41 37 35 33 (AMPACITY) / (FED FROM) 25 27 29 19 21 23 13 15 17 11 9 7 1 3 5 (AMPACITY) / (FED FROM) (AMPACITY) / (FED FROM) TYPICAL: NEUTRAL CONDUCTOR (APPLIED BY THIS CONTRACTOR) NEUTRAL BUS IN ELECTRICAL GEAR (TYP.) (TYP.) TYPICAL: POLE NUMBER LABEL ON WIRE (APPLIED BY THIS CONTRACTOR) NEUTRAL/GROUND CONDUCTOR LABELING INCOMING/OUTGOING SUB-FEED CONDUCTOR LABELING INCOMING/FEED THRU LUGS (AS APPLICABLE) DIVIDER LABEL WRAPPED AROUND CONDUCTOR MINIMUM 360° (TYP.) 2 1 NO SCALE 11
