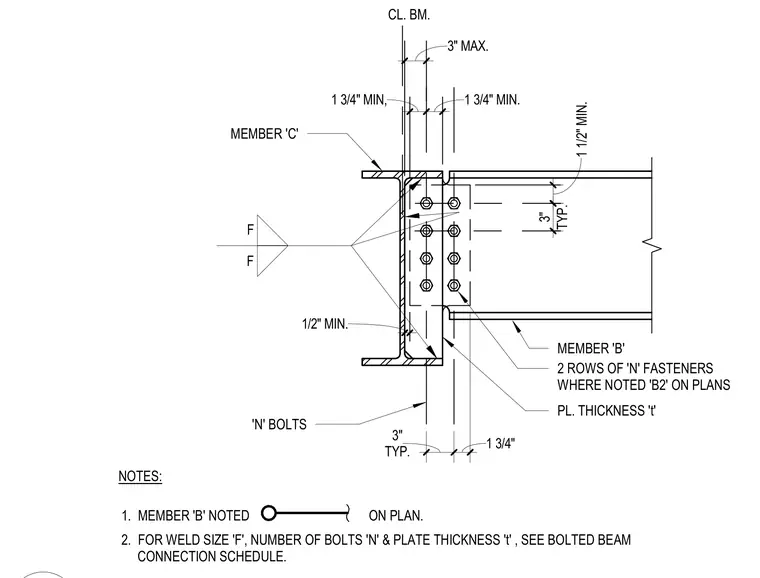

This structural detail shows a full depth beam connection joining member B to member C with a connecting plate of thickness t and N bolts. Two rows of N fasteners are provided where noted B2 on the plans, with specific edge distances and dimensions shown. Welds of size F secure the connection plate to the supporting member according to the bolted beam connection schedule.
'N' BOLTS MEMBER 'B' MEMBER 'C' PL. THICKNESS 't' 2. FOR WELD SIZE 'F', NUMBER OF BOLTS 'N' & PLATE THICKNESS 't' , SEE BOLTED BEAM CONNECTION SCHEDULE. 1. MEMBER 'B' NOTED ON PLAN. CL. BM. NOTES: TYP. 3" 1 1/2" MIN. 1 3/4" MIN, 1 3/4" MIN. 3" MAX. 1/2" MIN. F F TYP. 3" 1 3/4" 2 ROWS OF 'N' FASTENERS WHERE NOTED 'B2' ON PLANS
