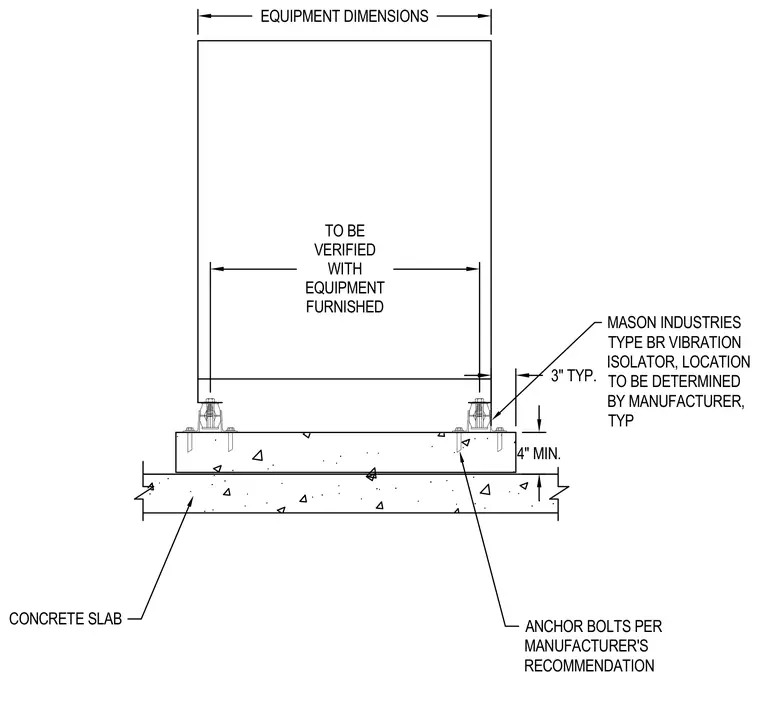

A dry type transformer rests on a concrete slab with a minimum thickness of four inches, supported by Mason Industries type BR vibration isolators located per the manufacturer's typical spacing. Anchor bolts secure the isolators to the concrete slab per the manufacturer's recommendations. Equipment dimensions are verified with the specific equipment furnished.
4" MIN. 3" TYP. EQUIPMENT DIMENSIONS TO BE VERIFIED WITH EQUIPMENT FURNISHED CONCRETE SLAB ANCHOR BOLTS PER MANUFACTURER'S RECOMMENDATION MASON INDUSTRIES TYPE BR VIBRATION ISOLATOR, LOCATION TO BE DETERMINED BY MANUFACTURER, TYP
