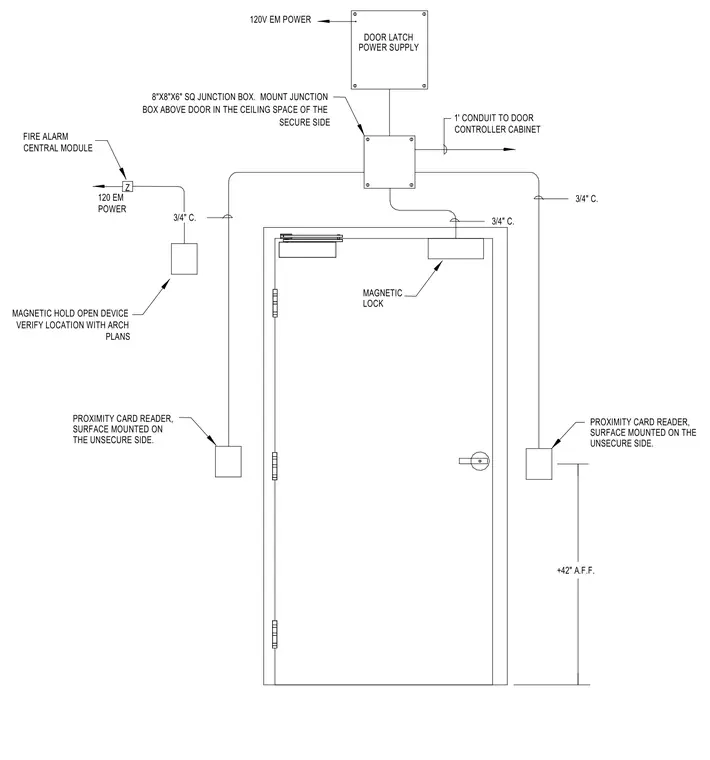

An eight-inch by eight-inch by six-inch square junction box is mounted above the door in the ceiling space of the secure side, connecting to a door latch power supply via 120-volt emergency power. A magnetic lock and proximity card reader are surface-mounted on the unsecure side at forty-two inches above finished floor, linked through three-quarter-inch conduits. An additional magnetic hold-open device integrates with the fire alarm central module and requires location verification with architectural plans.
Z 3/4" C. 3/4" C. DOOR LATCH POWER SUPPLY PROXIMITY CARD READER, SURFACE MOUNTED ON THE UNSECURE SIDE. +42" A.F.F. MAGNETIC LOCK PROXIMITY CARD READER, SURFACE MOUNTED ON THE UNSECURE SIDE. 120V EM POWER MAGNETIC HOLD OPEN DEVICE VERIFY LOCATION WITH ARCH PLANS 120 EM POWER FIRE ALARM CENTRAL MODULE 3/4" C. 1' CONDUIT TO DOOR CONTROLLER CABINET 8"X8"X6" SQ JUNCTION BOX. MOUNT JUNCTION BOX ABOVE DOOR IN THE CEILING SPACE OF THE SECURE SIDE
