Wall Horn, Strobe, Horn/Strobe

Materials

Elements

About this detail

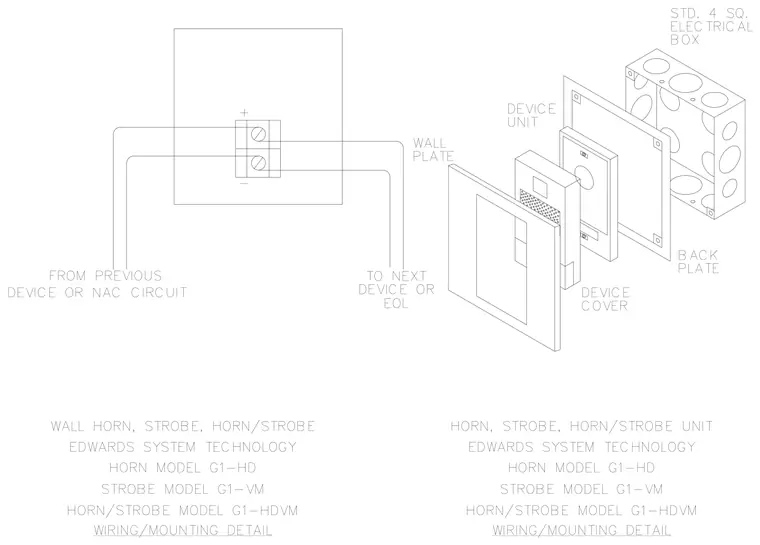

This installation assembly mounts to a standard four-inch square electrical box with a matching back plate and device unit. The wiring connects from the previous device or notification appliance circuit to terminal screws on the wall plate, continuing onward to the next device or end-of-line resistor. A device cover snaps over the unit to conceal the mounting hardware. The setup accommodates Edwards System Technology notification appliances including model G1-HD horn, G1-VM strobe, and G1-HDVM horn/strobe units.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
