Trapeze Hanger Support Assembly for Raceways

Materials

Elements

Beams Floors / Slabs Trusses Connections / Plates

About this detail

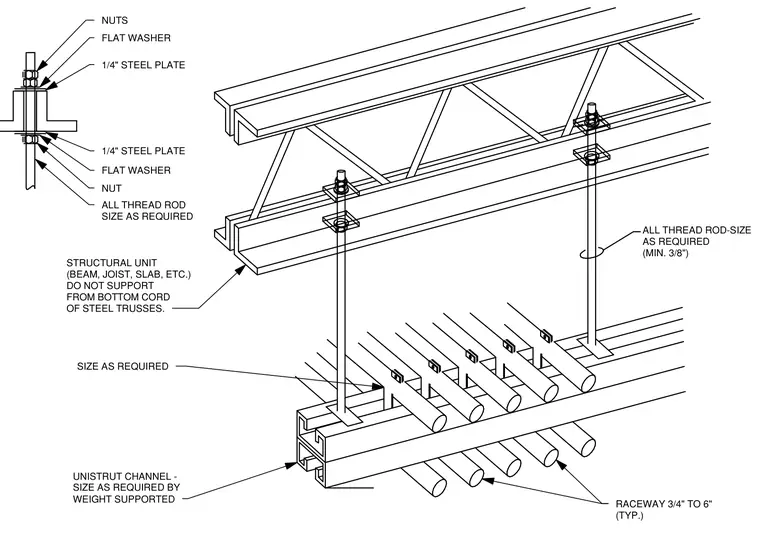

A trapeze hanger assembly suspends electrical raceways ranging from three-quarters of an inch to six inches in diameter. The trapeze support utilizes a Unistrut channel sized according to the weight of the supported utilities. All-thread rods, minimum three-eighths inch, extend down from overhead structural units such as beams, joists, or slabs. Nuts and flat washers secure the threaded rods through quarter-inch steel clamping plates above and below the structural flange. A note specifies that supports must not be suspended from the bottom chord of steel trusses.
